Food Grade Hose: The Complete Guide to Materials, Standards and Selection

A food grade hose fails in one of two ways. Either the compound taints the product — flavours, odours and plasticisers migrating into the liquid — or the hose itself fails the cleaning cycle and becomes a harbour for bacterial growth. Both failures are preventable at the specification stage, and both are far more expensive to fix after installation than before it.

This guide covers the decisions that matter: which standard applies to your product, which compound survives your product and your cleaning regime, and how to size the reinforcement so the hose outlives the process rather than the other way round.

The Standards: What “Food Grade” Actually Means

“Food grade” is not a single certification. It is a family of regulations covering different regions, different products, and different levels of contact. Understanding which one applies to you prevents both over-specification (paying for 3-A compliance on a bottled-water line that only needs FDA) and under-specification (using an FDA-only hose where the dairy inspector will require 3-A).

FDA 21 CFR 177 / 178

The United States Food and Drug Administration regulates the materials that may contact food. FDA 21 CFR 177 lists approved polymers (rubber compounds, PVC, silicone, UHMWPE, PTFE) and FDA 21 CFR 178 covers adjuvants such as plasticisers and vulcanising agents.

What it means for hoses: an “FDA-grade” hose is made from compounds whose ingredients appear on the approved lists. The FDA does not certify hoses; manufacturers self-declare compliance based on formulation. When a supplier says “FDA compliant,” ask for the formulation statement — a genuine one lists the specific CFR sections each compound meets.

3-A Sanitary Standards (3-A SSI)

3-A is a design and construction standard for dairy and food processing equipment, administered by 3-A Sanitary Standards Inc. It goes beyond material chemistry to cover surface finish, cleanability and the absence of dead spaces where product or cleaning solution can pool.

What it means for hoses: a 3-A hose has a smooth, non-porous bore (typically UHMWPE or PTFE lined), a fully encapsulated construction with no exposed fabric or wire, and connections that drain completely. 3-A is effectively mandatory for dairy, and increasingly expected in beverage, pharmaceutical and high-hygiene food lines.

EU Regulation (EC) 1935/2004 and EU 10/2011

The European framework regulates all materials intended for food contact. Regulation 10/2011 is the specific plastics implementing measure. European buyers will ask for EC 1935/2004 compliance declarations, which state that the material does not transfer constituents to food in quantities that could endanger health.

The Practical Takeaway

The Compounds: A Selection Table

The compound is the single biggest decision in food hose specification. Each family has a different temperature window, a different chemical resistance profile, and a different cost. The table below is the one specifiers actually use.

NBR (Nitrile Rubber)

The workhorse of the food industry for oils, fats and vegetable products. NBR resists swelling in animal and vegetable oils better than any other general-purpose rubber, which is why the classic orange “food hose” is almost always NBR. It is the right choice for edible oils, margarine, lard, and oily sauces. Its weakness is heat — sustained temperatures above 100°C degrade it quickly — and it is not the best choice for CIP regimes with strong caustic.

EPDM

EPDM is the cleanability champion. It tolerates hot water, steam and the aggressive caustic and acid cycles used in CIP (clean-in-place) systems, which makes it the default for dairy and brewery wash-down lines. EPDM does not tolerate oils — contact with mineral or vegetable oil causes swelling and rapid failure. If the line carries both oil and hot caustic, EPDM cannot do both; consider a lined construction instead.

UHMWPE-lined

Ultra-high molecular weight polyethylene is used as a liner over a rubber carcass, and it changes the game for hygiene. The UHMWPE bore is non-porous, non-tainting, and smooth enough that product residue and bacteria have nowhere to hide. UHMWPE-lined hoses are the standard answer for dairy, wine and high-purity beverage lines, and they clean up far faster than bare rubber in CIP. The trade-off is temperature: UHMWPE liners typically cap around 80°C, which rules out steam-sterilised lines.

Silicone

Silicone is the most chemically inert of the elastomers and operates across the widest temperature range, from freezer lines at -60°C to baking and sterilisation at 200°C. It is odourless and tasteless, which is why the food and pharmaceutical industries use it for sensitive products — brewing, flavouring, baby food, parenteral lines. Silicone’s weaknesses are mechanical: it is the least abrasion-resistant of the group, has lower tear strength than rubber, and is more expensive. Braided or reinforced silicone (with a polyester or stainless steel braid) fixes the pressure limitation and is the form most commonly specified.

PTFE-lined

PTFE (Teflon) is the ultimate barrier. Its chemical resistance is essentially total, it operates from -200°C to +260°C, and its non-stick bore is the easiest of all to clean. PTFE-lined hoses are specified for the most aggressive duties — hot chocolate and bakery fats, aggressive CIP chemistries, pharmaceutical intermediates — where no elastomer survives. The cost is the highest of the group, and the smooth PTFE bore can be more prone to kinking unless a convoluted or corrugated construction is chosen.

Compound Selection by Application

The compound table answers “what survives the product,” but the application table answers “what survives the process.” These are the seven food-industry applications that dominate hose purchasing, with the compound and construction each typically demands.

Dairy and Milk Lines

Raw milk, cream and cheese transfer demands 3-A compliance and a smooth, cleanable bore. The standard answer is an EPDM or UHMWPE-lined hose with stainless steel (tri-clamp) connections, rated for the hot caustic CIP cycles dairy plants run between every batch. Milk fat has a mild oil component, so a straight NBR tube is not the first choice — the liner isolates the product from the carcass.

Brewery and Beverage Lines

Beer is one of the most flavour-sensitive products in food processing — a hose that leaches the faintest plasticiser taint ruins an entire batch. Brewery specifiers choose UHMWPE-lined or silicone constructions with low-extractable compounds, and often dedicate hoses to single products. The same logic applies to wine, spirits and carbonated soft drinks, where product integrity is the brand.

Edible Oil and Fat Processing

Margarine, lard, frying oils and oily sauces are the NBR domain. The compound’s oil resistance is unmatched in the elastomer family, and it holds up to the gentle wash-down cleaning most oil lines receive. For refined oils at higher temperatures, a PTFE-lined hose takes over — the liner eliminates any swelling risk and survives the hot process.

Confectionery and Bakery

Chocolate, syrups and bakery fats are hot, viscous and sticky. PTFE-lined hoses dominate here because the non-stick bore lets the product flow without residue build-up, and the liner survives the 80–150°C process temperatures and the aggressive cleaning between colour changes. Silicone is the alternative for lines that need flexibility and steam sterilisation.

Juice, Pulp and Sauces

Acidic products like fruit juice, tomato paste and vinegar-based sauces need a compound that resists both acid and the abrasive pulp particles in the flow. UHMWPE-lined hoses handle the acid and the abrasion; where pulp is heavy, a larger bore and gentle bends reduce erosion at the liner surface.

Pharmaceutical and Bioprocessing

The pharma bar is higher than food: USP Class VI, often 3-A, and validation documentation for every material in contact with the product. PTFE-lined hoses with stainless steel fittings are the standard for the aggressive chemistries, and silicone braided hoses for the transfer lines that must be steam-sterilised between runs.

Wash-down and Plant Hygiene

The hose on the wash-down station is a different product from the transfer hose — it moves hot water, detergent and sometimes steam across the plant floor. EPDM is the standard for wash-down service because it survives the hot water and caustic, with a reinforced construction so it stands up to dragging and abrasion on concrete.

Sizing: Reinforcement, Pressure and Bend Radius

Once the compound is chosen, the hose must be reinforced to survive the operating pressure without being so stiff that it cannot be routed.

Construction layers

A food grade hose is a sandwich: the tube (the compound that contacts the product), the reinforcement (textile braid, spiral wire, or both), and the cover (a rubber or synthetic outer that protects the carcass from abrasion, chemicals and UV).

• Textile braid — flexible, kink-resistant, moderate pressure. The default for most food transfer duties.
• Spiral wire — higher pressure and better vacuum resistance, at the cost of flexibility and bend radius.
• Combined (wire + braid) — the heavy-duty option for suction-and-discharge service where the hose must hold pressure and resist collapse.

Pressure ratings

Never select on working pressure alone. The rating that matters for food lines is usually the working pressure at operating temperature, because elastomers lose strength as they heat. A hose rated 10 bar at 20°C may drop to 6 bar at 100°C. Ask the supplier for the pressure-temperature derating curve, not just the cold rating.

Bend radius

The bend radius is where most installation failures happen. Forcing a hose past its minimum bend radius kinks the reinforcement, permanently damages the tube, and creates a cleaning blind spot at the fold. The general rule: the tighter the bend radius, the more flexible the hose — and the more expensive per metre. Route planning should treat the bend radius as a hard constraint, not a suggestion.

CIP: Cleaning the Hose Without Destroying It

Clean-in-place systems are the hardest service a food hose faces. A typical dairy CIP cycle alternates hot caustic, hot acid and hot rinse water at 70–95°C — conditions that slowly attack most elastomers.

Matching the hose to the cleaning regime

Cleaning checklist

• Drain fully — a 3-A hose is designed to drain; install it with continuous fall so no product pools.
• Respect the temperature ceiling — CIP at 95°C will destroy an NBR hose in months. If the process is hot, specify EPDM, silicone or lined.
• Check the liner after each cycle — a scuffed or blistered liner is a bacterial harbour and must be replaced, not patched.
• Log replacement — food hoses are consumables with a service life; replace on a schedule, not on failure.

The Three Most Common Specification Failures

1. Compound selected for the product, not the cleaning regime. An oil line picks NBR — correct — but the CIP cycle uses hot caustic, which NBR cannot survive. The hose fails from the inside in months. Solution: check the compound against both the product and the cleaning chemicals.
2. Pressure rating read at cold, not at operating temperature. The hose is fine on paper and bursts in service. Solution: demand the derated working pressure at the process temperature.
3. “FDA compliant” accepted without evidence. The phrase is marketing until backed by a formulation statement listing specific CFR sections. Solution: request the declaration in writing before purchase.

Documentation: What to Demand From the Supplier

A food hose is only as good as its paperwork. The certificates and declarations below are not bureaucracy — they are the evidence that the hose in your hand is the hose on the specification sheet, and they are what a hygiene auditor will ask for on the first visit.

The four documents to request

1. Material compliance declaration — a statement from the manufacturer listing the specific CFR sections (or EC 10/2011 references) each compound meets. A genuine declaration names sections; a vague “food grade” letter is marketing.
2. Certificate of conformity (CoC) — confirms the delivered batch matches the specification: compound, reinforcement, pressure rating, bore size and length.
3. Test certificates — burst pressure, working pressure and, for sanitary hoses, surface finish measurements. Insist on batch-level certificates, not type-level.
4. Cleaning compatibility statement — the manufacturer’s written position on which CIP chemicals and temperatures the hose survives, and for how many cycles. This is the document that prevents the NBR-in-hot-caustic failure described earlier.

Red flags

• The supplier cannot name the CFR section or EC regulation the compound meets.
• The “FDA” claim is a logo on the website with no backing document.
• Pressure ratings are quoted cold, with no derating curve for temperature.
• The manufacturer has no batch traceability — no way to connect a production run to its certificates.

A supplier that provides all four documents is a supplier that understands the industry. A supplier that hesitates is a supplier that has never been asked before — and that is the supplier to avoid on a food line.

Installation and Maintenance: Making the Hose Last

Correct installation doubles the service life of a food hose. Most premature failures — kinked liners, delaminated covers, split fittings — are installation errors, not product defects.

Installation rules

• Never bend past the rated radius. The minimum bend radius is a hard limit, not a guideline. Use hose guards or elbow fittings at corners instead of forcing a tight bend.
• Support long runs. A food hose carrying hot product sags and stretches under its own weight. Support runs every 1.5–2 m with clamps that do not crush the reinforcement.
• Leave slack at fittings. Hoses connected to vibrating pumps or moving equipment need a service loop — without it, the fitting end suffers cyclic fatigue and cracks.

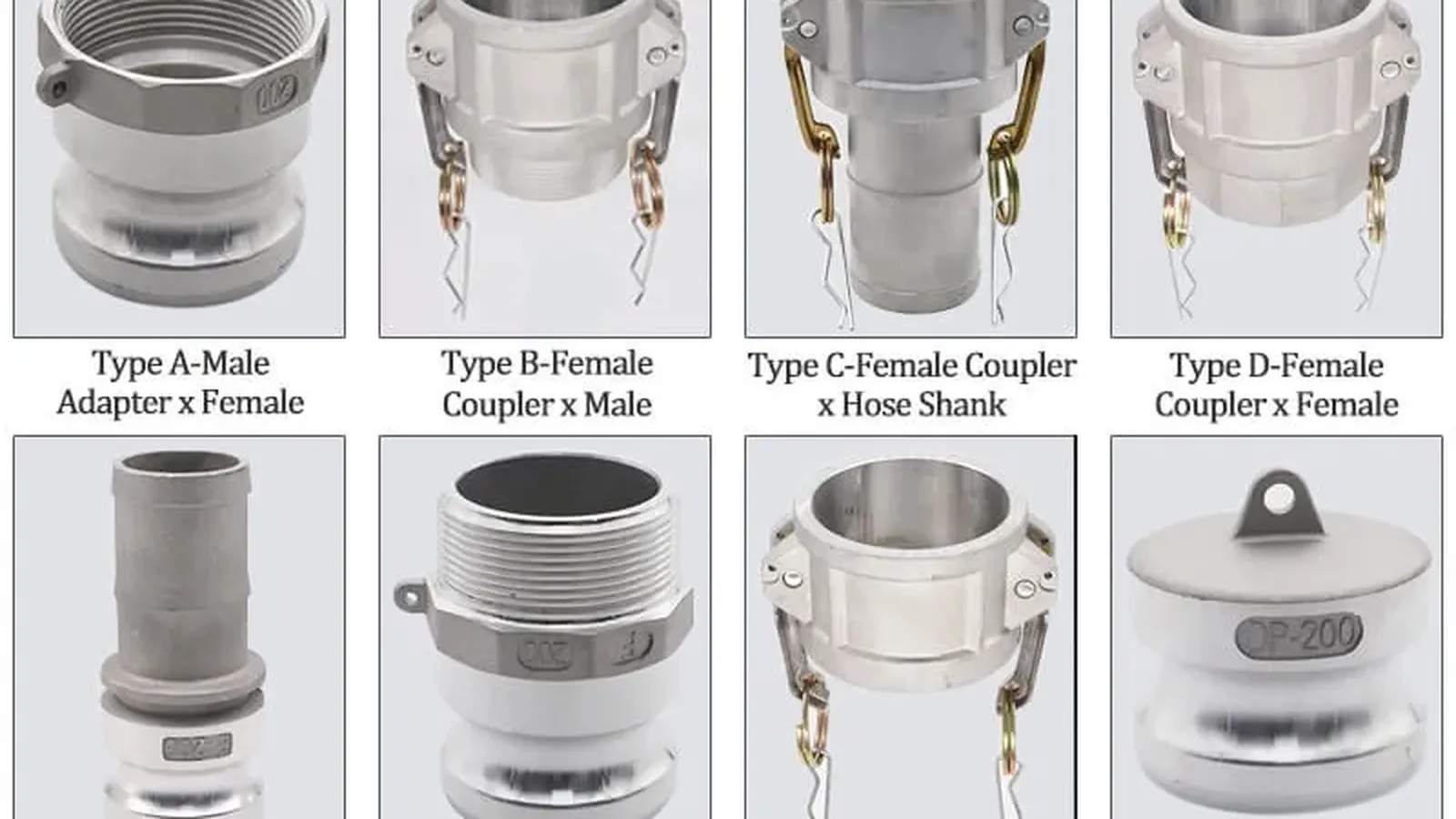

• Use the right fittings. Tri-clamp for sanitary lines, camlock for rapid transfer, BSP/NPT for threaded connections. Never mix connection standards on one line.
• Check the lay direction. If the hose has a marked lay or a directional arrow (common on braided constructions), install it in the direction of flow.

Daily and periodic checks

Replacement signals

Replace the hose when any of the following appear — not when it fails:

• Blistering, peeling or cracking of the bore liner (bacterial harbour).
• Cover cuts that expose the reinforcement (structural failure waiting to happen).
• Permanent kinks that do not spring back (tube damage).
• Hardening or softening of the compound beyond the original durometer range.
• Fittings that no longer seat squarely.
• The documented service life (cycles or years) has been reached.

Selection Checklist

• Which standard applies — FDA, 3-A, EC 1935/2004, USP Class VI?
• What is the product, and what is its temperature range?
• What chemicals are used in cleaning, and at what temperature?
• What working pressure at operating temperature (not cold rating)?
• What bend radius does the route require?
• Will the hose see vacuum (suction) service? Wire reinforcement needed?
• What bore size and connection style (camlock, tri-clamp, BSP/NPT)?

FAQ

Is “food grade” and “FDA approved” the same thing? No. “Food grade” is an umbrella term. FDA approval applies to materials (21 CFR 177/178) and is self-declared by the manufacturer. 3-A is a separate sanitary design standard. Always ask which specific standard the hose meets.

Can one hose do both oil and dairy? Rarely. NBR handles oil but not hot caustic; EPDM handles caustic but not oil. For a line that carries both, specify a lined construction (UHMWPE or PTFE) over a carcass chosen for the service.

How long does a food grade hose last? It depends entirely on the compound, temperature and cleaning regime — from a few months in punishing CIP service to several years in gentle cold transfer. Replace on a documented schedule, not on visible failure.

Can food hoses be steam sterilised? Only silicone and PTFE-lined constructions tolerate live steam. Rubber hoses blister and delaminate under steam exposure.

What is the difference between a food hose and a sanitary hose? “Food hose” generally refers to FDA-compliant transfer hose. “Sanitary hose” implies 3-A design compliance — smooth bore, drainable, no dead spaces — for dairy, beverage and pharmaceutical lines. Sanitary is the stricter spec.

Do I need a new hose for different products? A well-selected compound can handle a family of products, but flavour-sensitive lines (beer, dairy, flavouring) should be product-dedicated to prevent taint cross-contamination, and the CIP regime must be compatible with the compound.
