A suction hose has one job most hoses never think about: it must hold its shape while trying to collapse. Pump air out of the bore and atmospheric pressure pushes in with roughly 1 bar of force — enough to crush a standard pressure hose flat like a stepped-on straw. The engineering that prevents that collapse is the defining feature of suction and discharge hose.
This guide covers the vacuum mechanics, the constructions that survive it, the material families, the standards, and a five-step selection process for suction, discharge and combined duty.
Why Suction Hoses Are Built Differently
Every hose resists internal pressure by tension in its reinforcement. A suction hose must also resist external pressure — the atmosphere pushing inward when the bore is under vacuum. Textile reinforcement cannot do that; it has no rigidity against compression.
The answer is a spiral wire helix embedded in the hose wall. The wire acts like the rings of an old diving suit: it holds the bore open against collapse. That single structural element is what separates a suction hose from a pressure hose:
| Feature | Pressure hose | Suction & discharge hose |
|---|---|---|
| Reinforcement | Textile braid or wire braid | Spiral wire helix (+ braid) |
| Vacuum resistance | None — collapses | Full or partial vacuum |
| Internal pressure | Yes | Yes (discharge duty) |
| Kink resistance | Moderate | Good (wire spring-back) |
| Typical use | Pump delivery lines | Pump inlet lines, transfer |
Hose described as “suction and discharge” (吸排管) is built for both: it carries the wire helix for vacuum duty and sufficient reinforcement to handle moderate positive pressure on the discharge side.
Vacuum Ratings: What the Numbers Mean
Vacuum is measured in negative pressure relative to atmosphere. The common spec language:
- Full vacuum — the hose withstands complete evacuation (−1 bar / 30“ Hg / 760 mmHg). This is the top rating, required for tanker offloading, deep suction lifts and flooded pump inlet duty
- Partial vacuum — rated to a percentage of full vacuum (e.g. 70%, 80%) or a specific value (−0.7 bar, −0.8 bar). Suitable for shallow lifts and gravity-fed suction
- Test method — vacuum rating is verified by holding the hose at the rated vacuum for a defined period and checking for collapse, wall separation or liner delamination
Two practical notes: vacuum rating decreases with temperature (the wall softens) and with larger bores (more area for atmospheric pressure to act on). A 2“ hose that handles full vacuum may need a heavier wire pitch than a 1“ hose of the same wall.
The Construction Families
PVC suction hose
The workhorse. PVC suction hose with an embedded PVC or steel helix is light, cheap, transparent (product visibility), and chemically resistant to many acids and alkalis.
- Vacuum: up to full vacuum in steel-helix constructions
- Temperature: −10 °C to +60 °C
- Strengths: cost, weight, visibility, smooth bore
- Weaknesses: cold stiffening, limited temperature, UV degradation over years
- Typical standards: ISO 4641 (water suction/discharge), FDA grades for food service
Rubber suction hose (EPDM / SBR / NR)
Rubber suction hose brings durability, temperature range and abrasion resistance. EPDM covers water, mild chemicals and weathering; SBR/NR is a budget general-purpose option; NBR/CR (neoprene) handles oil and fuel duty.
- Vacuum: full vacuum in wire-reinforced constructions
- Temperature: −20 °C to +80 °C (EPDM up to 100 °C in hot-water grades)
- Strengths: toughness, temperature, abrasion, oil resistance in NBR/CR
- Weaknesses: weight, cost vs PVC
- Typical standards: ISO 4641, EN 1765 (oil suction/discharge), EN 855
Food-grade suction hose
Food and beverage suction duty (dairy tanker offloading, wine transfer, edible oil) adds certification to the vacuum requirement. Platinum or peroxide-cured EPDM/UHMWPE-lined constructions with FDA-compliant tubes and wire helix are the standard answer.
- Certifications: FDA 21 CFR 177.2600, 3-A, EU food-contact
- Vacuum: full vacuum typical
- Cleaning: CIP-compatible, smooth bore for hygiene
- Typical duty: tanker offloading, gravity-fed transfer, pump inlet
Oil & fuel suction hose
Built to EN 1765, these handle petroleum products with NBR tubes and CR covers, with static-dissipative options for flammable transfer.
Reinforcement Details That Matter
- Internal wire vs external wire: internal helix gives a smooth outer surface but a slightly ribbed bore; external helix gives a smooth bore (better for food, faster flow) but a ribbed cover. Food and hygienic duty generally favours smooth bore
- Wire pitch and gauge: tighter pitch and heavier wire = higher vacuum rating; the spec sheet states the vacuum class explicitly
- Wire material: steel for general duty, stainless for corrosion and food duty
- Anti-static options: for flammable suction duty, conductive wire construction with continuity across fittings
Applications
| Application | Typical construction | Why |
|---|---|---|
| Water transfer / dewatering | PVC suction, steel helix | Cost, visibility, light weight |
| Tanker offloading (food) | Food-grade EPDM/UHMWPE, smooth bore | Full vacuum + FDA + CIP |
| Oil & fuel transfer | NBR/CR, EN 1765 | Petroleum compatibility, anti-static |
| Sewage & slurry | Heavy rubber, thick cover | Abrasion resistance |

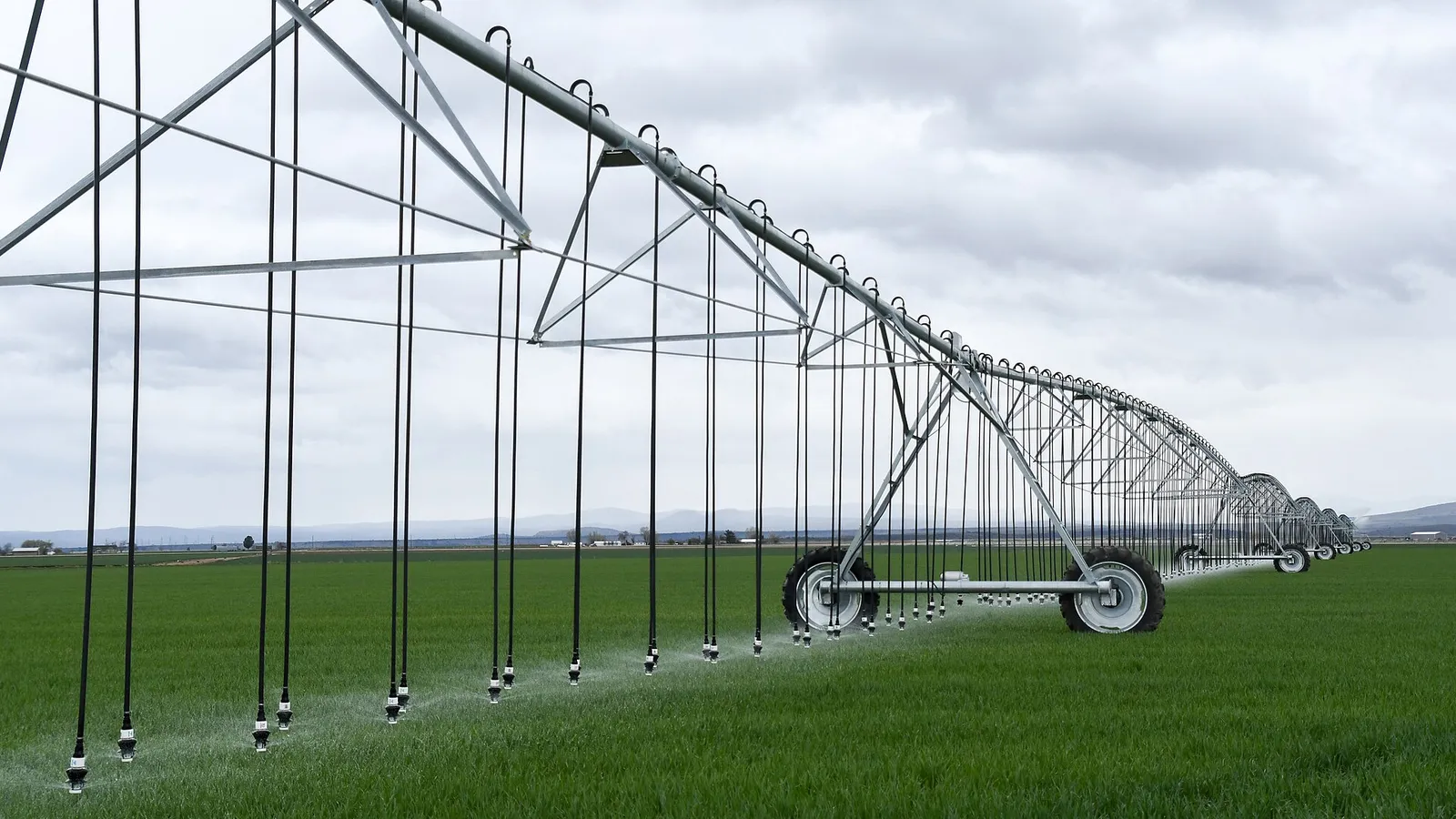

| Agricultural irrigation | PVC or light rubber | Cost, flexibility |
| Chemical suction | UHMWPE/PTFE-lined | Chemical compatibility + vacuum |
Five-Step Selection Process
Step 1 — Define the vacuum. Full vacuum or partial? This decides the wire helix class and the construction family.
Step 2 — Define the media. Water, chemical, food, oil, abrasive? This decides the tube/liner material and certification needs.
Step 3 — Define temperature. Continuous service temperature picks PVC vs rubber vs specialty constructions.
Step 4 — Define pressure and flow. Discharge pressure, bore size for flow velocity, and bend radius for routing.
Step 5 — Check the connections. Couplings, flanges or camlocks — and whether the hose comes as a complete tested assembly.
Suction Lift and Pump Matching: The NPSH Connection
The hose is part of a hydraulic circuit, and its vacuum rating must work with the pump’s suction capability:
- NPSH (Net Positive Suction Head) is the pump engineer’s language for “the suction side must not starve the pump”. A collapsing or undersized suction hose increases suction-side pressure loss — the practical result is cavitation, noise, vibration and destroyed pump seals
- Rule of thumb: size the suction hose one size up from the discharge line where possible — suction-side velocity is typically limited to ~1.5–2 m/s, well below the 4.5–6 m/s allowed on discharge
- Keep the suction run short and straight — every bend and every metre of undersized hose adds suction-side loss that the pump must overcome
- Match the vacuum rating to the lift: a 3-metre static lift at sea level needs roughly 0.3 bar of vacuum — a partial-vacuum hose would survive it, but a full-vacuum hose gives the margin for dynamics, cold starts and hose aging
When in doubt, oversize the suction hose and specify full vacuum — the cost difference is small, and cavitation damage to the pump is not.
Inspection and Maintenance Checklist
| Check | Frequency | What to look for |
|---|---|---|
| Cover condition | Before each use | Cuts, abrasion, wire exposure (external helix) |
| Bore collapse | During use | Suction kink, flat spots, reduced flow |
| Wire helix integrity | Weekly | Dents, corrosion, broken wire poking through wall |
| Fitting security | Weekly | Movement, leaks, gasket condition (camlock) |
| Internal condition | Quarterly | Flaking, discoloration, delamination visible at ends |
| Vacuum test | Per manufacturer interval | Hold rated vacuum, check for collapse |
Take out of service immediately if: the hose shows flat spots that do not spring back, visible wire breakage, bulges under pressure, or any leak at a fitting.
Suction & Discharge Hose FAQ
Q: Can I use a pressure hose for suction? No. A standard pressure hose has no collapse resistance and will flatten under vacuum, cutting flow or stopping it entirely — and repeated collapse damages the tube.
Q: What does “full vacuum” hose cost over partial? More wire, more weight, higher price. If the application only ever sees shallow suction (e.g. gravity-fed pump inlet), a partial-vacuum hose is the economical correct answer.
Q: PVC or rubber suction hose — which lasts longer? Rubber generally outlasts PVC in harsh duty (temperature, abrasion, weather); PVC wins on cost, weight and product visibility. Choose by environment, not by preference.
Q: Why does my suction hose need a strainer? Debris pulled into the inlet abrades the tube and can block the pump. A strainer/foot valve protects both hose and pump — it is cheap insurance.
Q: Do you supply suction hose assemblies with camlock or flange ends? Yes — PureFlow supplies suction and discharge hose in loose lengths or complete assemblies with camlock, flange, or threaded ends, pressure and vacuum tested.
The Takeaway
Suction and discharge hose is defined by its vacuum rating and its wire helix — the two things a pressure hose does not have. Get the vacuum class right for the lift, the material right for the media, and the assembly tested as a unit, and the hose becomes the reliable middle of the transfer system.
If you are selecting suction or discharge hose — send the lift height, media, temperature and connection type — PureFlow will come back with the right vacuum class and construction, factory-direct.
